Monday, December 8, 2014

New "Builtnotbaught" shop equipment/tools

Recently took the time to build a couple assets to the shop. GarageWrench is in a garage, its 30'x30' and full. Needed to condense things to come up with much needed bench space taken up by grinders and welders, so here's what we came up with;

Ultra expensive welding fixture (there is talk in the blogosphere that Jesse James would like to purchase this particular fixture, well its not for sale popeofwelding!)

Welding, plasma and torching station. Its completely mobile, extension cord for the 220V is long enough to not only roll anywhere in the shop, but reach 10' into the driveway.

Back side, gas tanks strapped in nice and safe. The PVC tubes hold filler rods.

4" casters

Tig welder, plasma cutter side by side, bottom shelf for stuff.

Vise compliments of the Orient, table brakes on both sides. Every hose and cord has its own hanger.

Air hose manifold directs air for tooling and plasma. The overhang on the backsplash is where all the welding clamps attach.

110 Volts

Both machines use the same 220V outlet, has a 25" cord rolled up on the side.


3 grinders taking up bench space. Ever build an engine on the same bench as yer grinder? I did it for years, what a pain.

So here is the grinder Lazy Susan. Made from and old air press and some scrap metal.


Mounted 2 grinders and a belt/disc sander.

Has a locking pin for all three positions.

There is our space saving shop equipment ideas. Yer more than welcome to steal them for yourself.



Sunday, October 12, 2014

Brooklyn Invitational 2014

One more highlite to my summer this year was riding to Brooklyn with my bro Smooth and attending the 2014 Brooklyn Invitational Bike Show. Rode the 644 miles there on Friday, stayed in Brooklyn for two nights, rode the 640 home on Sunday. While there had a chance to ride the subway from Brooklyn to Manhattan and see the Freedom Tower and World Trade Center Memorial.

The BI show was off the hook! The Invited builders bikes was just to much! It was worth the ride there to just take in all the detail on those machines, but the street was just amazing. We was there for a few hours and never was tired looking at choppers. The hand made parts, subtle detail, paint (or lack of), open belt drives and foot clutches, custom bars, bob's or chopper tanks...... on and on.

I took around one hundred pic's, here are a few of my favs. Hope you enjoy. I just need to shout out to my brother Cochise for lending me his 2006 FLHT, my Shovelhead developed a cold engine noise and I did not want to push it, so my bro stepped up, thanks and I LOVE you very much!

Iron Mustangs do not get lost on NY subways. Or do they?
Myself and Smooth (should have done the duck lip thing)

Freedom Tower

Memorial

Shot from the end of the street where the Brooklyn Invitational was held.



You see this from anywhere in and around the city.

Ok, lets go inside and see the invited the builder machines,


Iron Head, check out that stainless exhaust work.

Fancy smanchcy master cylinder

Not just "another Knuckle with Springer"

Secret message

Love the clutch linkage

Swingarm Chopper

Yep

Its in the details

Love the open belt look

Its really in the detail

The "#1" was set into the tank about 1/2"

Very clean

So much you can do with a open belt and foot clutch

Lots of these in the streets of Brooklyn

Yes!

Check out the sheet metal detail

Clutch and peg, outstanding!

Wow!

Nothing like a flathead, or two

Oil and dirt!

For sale!

Keep looking at this Shovel and you will see more and more detail!

Tail lights

Chopper Paint

Another awesome foot clutch

Nice metal work!

Ok, lets roll inside to see the invite builders

Paul Cox





This Knuckle was my second Favorite there, the next bike was my pick for best in show






Scott "T Bone" Jones just nailed it with this Shovelhead, well done Noise Cycle, well done.

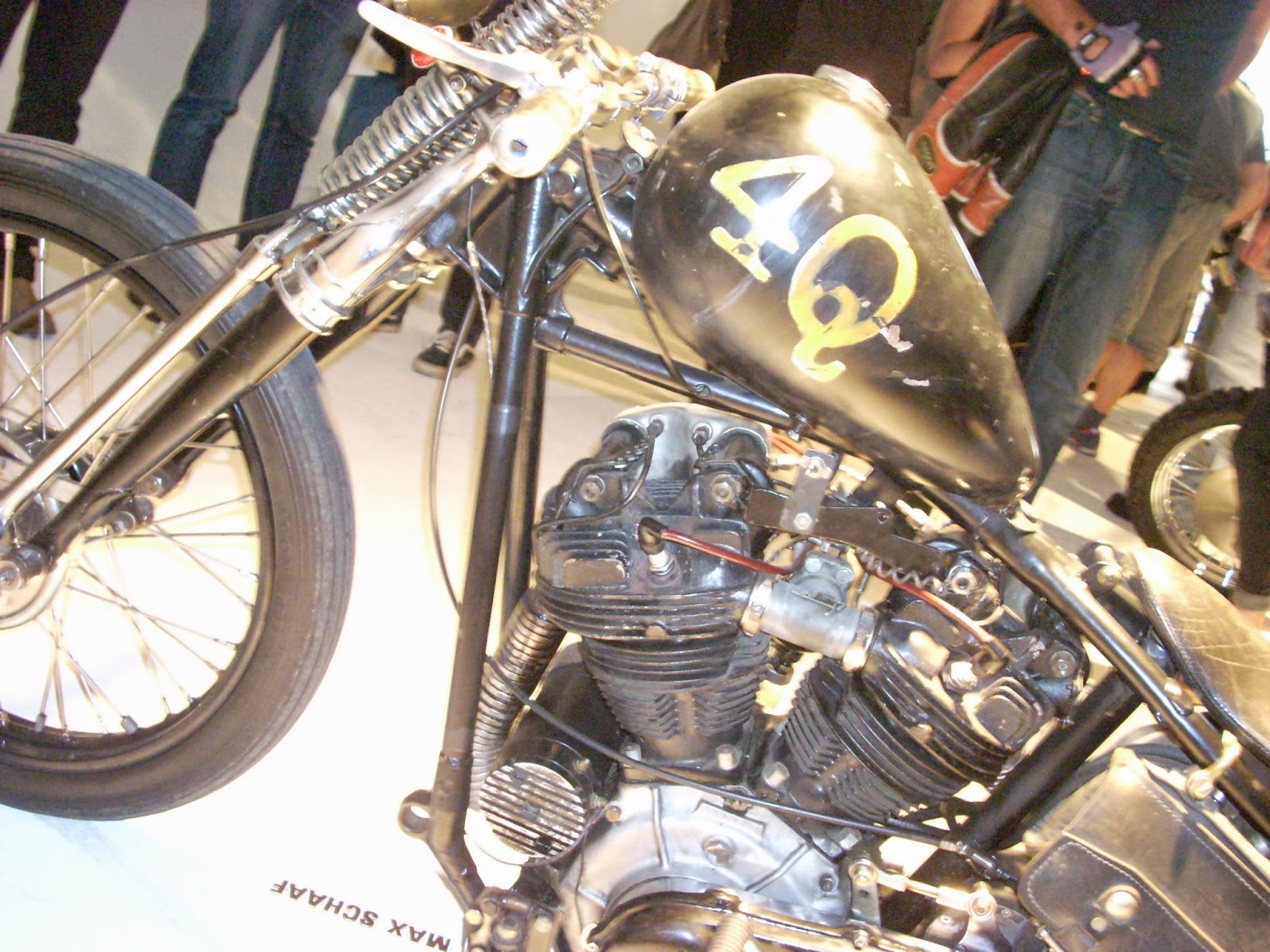

Anyone seen this gem from 4Q before?


Looks well ridden, just has a certain character to it, well done Max Schaaf.



Yep, water cooled Knucklehead!

Another cool foot clutch!


Just look at the detail in that


Well done Mr Cox! I hear this Iron is for sale?

Mr Tom Fugle, thanks for sharing sir.

Well thats it from our little three day trip to New York, hope you like it as much as I did, would love to have had more time to see the city, what a awesome experience it was.
